55 Inch 2500 nits Window LCD Screen



Product Overview

Gemdragon's 55 Inch 2500 nits Window LCD Screen is the perfect digital signage solution for high-visibility window displays. Designed to deliver stunning visuals with 4K UHD resolution and ultra-high brightness, this screen ensures your content stands out even in direct sunlight. Ideal for retail windows, commercial settings, and public spaces, this display offers unparalleled performance and versatility.



Key Features

  • High Brightness Display: With a brightness of 2500 nits, this screen ensures clear visibility even in bright sunlight.
  • 4K UHD Resolution: Provides crystal-clear images with a resolution of 3840x2160.
  • Multiple Installation Options: Supports vertical or horizontal hanging installation for flexible display configurations.
  • Robust Performance: Features anti-vibration, anti-electromagnetic interference, stable picture quality, and a wide temperature range.
  • Smart Android System: Equipped with Android 11.0, RK3568 4G32G for seamless operation and connectivity.
  • Remote Control Management: Supports LAN & CLOUD, PC & mobile devices for easy content management and control.

Gemdragon for 2500 nits Window LCD Screen

Item


Specification

55inch



1. Size: 55inch

2. Model: SX-55D2500A

3. 3840*2160, 4K UHD

4. Active matrix LG LCD Panel : 2500nits

5. Android 11.0, RK3568 4G32G

6. Google, play store, bluetooth

7. HD CMS

8. EU plug

9. Black color

10. No touch

11. Vertical/Horizontal installation

12. Hanging Installation

Product Pictures

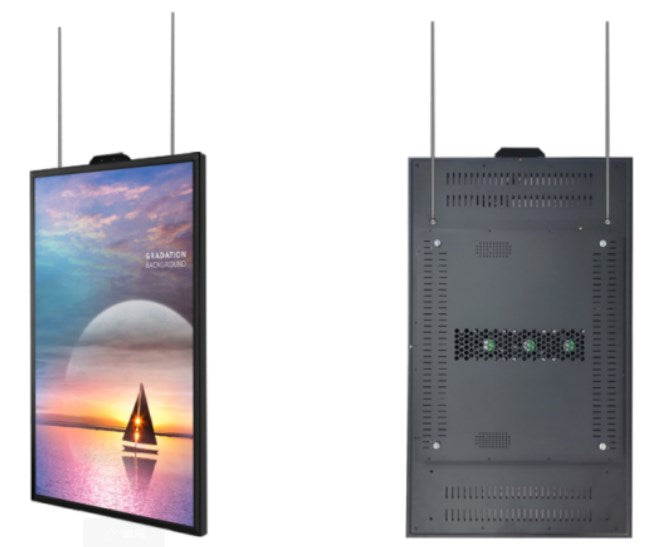

Installation Way

Hanging installation : Price included. (Picture is for reference)

window lcd display.png

Aging test

window display aging test.jpg

Packing

window display packing.jpg



Drawing size:

Panel Specification:

The Active Matrix LCD Screen has the characteristics of anti-vibration, anti-electromagnetic interference, stable picture quality and wide temperature range.

(When the screen running at high brightness of 2500, the internal temperature will reach 48-50°C.  In order to protect the screen from being burned out and shortening its working life, we would recommend using an Active Matrix LCD Screen solution, which can resist direct ultraviolet rays from the sun through the window glass.)

Specification:

Panel Size

55’’

Model No.

SX-55D2500A

Brand

Original LG

Aspect Ratio

16:9

Visual Angle

Horizontal 178/Vertical178

Brightness

2500cd/m²

Bezel

5mm

Back light

LED backlight

Contract Ratio

1200: 1

Resolution Ratio

3840*2160, 4K UHD

Color Components

16.7M

Response Time

8ms

Power Consumption

190W



Standby power consumption

10W

Power Supply

Input:AC110-240V-50/60Hz

Life of Panel

50000Hours

Haging Type  (mm)

Steel Cables (1meter - 2meters )

The specification of Android RK3568 :

Hardware specifications

CPU

RK3568, quad-core, main frequency up to 2.0GHz , Android11

GPU

Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1

Memory

Standard 2GB , optional 4GB

Built-in storage capacity

eMMC standard 16GB optional 32GB

TF Card expansion (can be used to expand SSD)

Network

Support RJ45 R/A 100M Ethernet, support Ethernet ;

Support 5.8 GHz Wi-Fi ;

Support Bluetooth 4.2 , mobile phone can send programs via Bluetooth.

Image rotation

Supports 0 degree, 90 degree, 180 degree, 270 degree manual rotation ; optional gravity sensor sensor supports automatic rotation

Display interface

1*LVDS interface (single/dual channel, 6-bit/8-bit), supports 3.3V/5V/12V power supply

1 EDP interface, 1 HDMI

1 V- By-One interface, supports 1 080 P output

Reserve 1 HDMI IN interface, can be equipped with a small board

Onboard backlight control supports 12V backlight power supply

Audio

Supports standard left and right channel line output ; supports 3.5mm audio output interface

Amplifier

2 outputs (8 ohm 5 watt dual audio amplifier output)

Microphone

Differential MIC input

Touchscreen

Support USB multi-point infrared touch, multi-point capacitive touch, multi-point nano film touch, multi-point sound wave

touch, multi-point optical touch and more. .

RTC

Built-in real-time clock function

USB

1 USB-3.0 HOST, 1 USB3.0 OTG, 5 expansion USB ports

Infrared

Infrared receiver, supports infrared remote control function

Led

1*Power status LED (green), 1*System LED (green, default flashing)

Button

1*upgrade key

Serial port

4 UART, 1 DEBUG, 1 MCU burning serial port ; optional RS232 , RS 485

Among them, UART 1 is reused with Bluetooth, and the default is Bluetooth function.

GPIO

5-channel IO input and output control, can be used for key scanning control

KEY

Support physical switch

Power Adapter

Input: AC100-240V.50-60HZ, Output: DC12V 1.5A

(The surge voltage is required to be less than 18V and the ripple voltage is less than 100mV)

Storage humidity

10%~90%, no condensation

Storage temperature

-40 ℃ ~70 ℃

Operating temperature

- 20 ℃~ 70 ℃



Software specifications

Operating system

Android 11

Audio

MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP and other formats

Video

Support H.265, H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 and other video formats


Support various image formats such as JPG, BMP, PNG, etc.

The system comes with application software

APK installer, email, calculator, browser, voice recorder, calendar, settings, clock, video player, search, contacts, gallery, downloads, camera, music, explorer and more

Language

support multi-languauge

Input

Standard Android keyboard, optional third-party input method

System Management

Original Android system with open root permissions for customized product development

Real-time remote monitoring, self-recovery from system crash, 7*24 hours unattended

Support OTA remote upgrade; support U disk upgrade

Support boot animation definition

Support server/stand-alone mode switching

Support Wi-Fi hotspot

System watchdog

Support software watchdog and hardware watchdog

Remote Control Management System:



l Support LAN & CLOUD ;

l Support PC & Mobile devices ;

l Support Network & Standalone version;

l Support groups management;

l Support program management (timed play or scheduled play);

l Support control volume, power on/off time, real time update from PC/Mobile

l Supports management of multiple terminals at different locations.



More details please refer the attached files about the CMS .


wifi connection.jpg

Installation case: Other options

Installation case.png



Customer project’s feedback:

customer feedback 1.jpg

customer feedback 2.jpg

customer feedback 3.jpg

Applications

This 55-inch window LCD screen is ideal for:

  • Retail Windows
  • Commercial Settings
  • Public Spaces
  • Transportation Hubs
  • Hospitality Venues

What is the Warranty policy ?

We warranty 1 year for screen , 2 year for parts During 2 year warranty period, for small part defective,we will send replacement parts for free of charge to customers,so customers can replace defective parts by new parts by themselves. We also will pay for shipping cost. For big defective problem,customers have to ship back defective units to us and we will repair or replacement for them for free of charge. For life-time maintenance (out of 1 year warranty period),any defective parts or units,customers will pay for replacement parts and shipping cost.We will charge a bottom cost for parts. The man-made damage and misusing damage is not under warranty.



Receiving process.

1. After the arrival of the goods, please check whether the packaging is damaged, if there is damage, please take pictures and videos to keep as evidence, and feedback to the sales staff.

2. open the package to check the product, pay special attention to the location of the wooden box by the impact (it is recommended to take video operation throughout), and power on the test.

3. Power on the test without problems before assembly



The after-sales handling process





(1)No single number and logistics without updates -



contact sales staff to provide a single number or update the logistics status



24hours



(2)Shipment stuck in customs



inform the sales staff of the required documents



24hours



(3)Inform the sales staff of the required documents

provide the local port of destination charges detailed, to the sales staff to verify





24hours



(4)Machine installation problems

sales staff to provide installation guidance or video guidance.





24hours



(5)Machine use problems

contact sales staff to provide guidance and technical support.





24hours



(6)The quality of goods problems

tell us what the problem is, and provide video and pictures, the engineer to determine the cause of the problem, and provide solutions.





24hours

Contact Us

Elevate your window displays with Gemdragon’s 55 Inch 2500 nits Window LCD Screen. Contact us today to learn more about how this high-performance digital signage solution can benefit your business.
