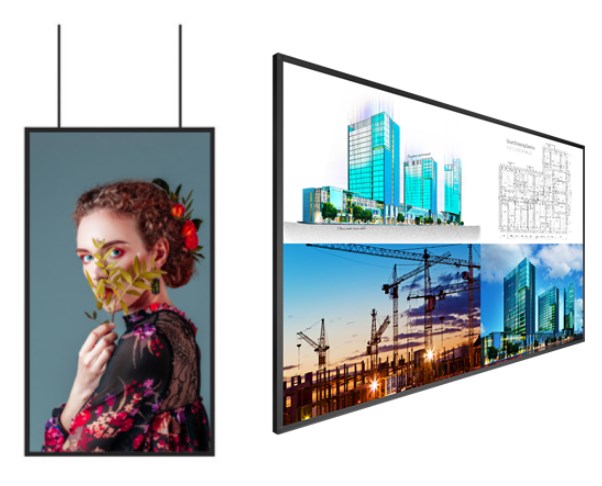

Ultra-narrow Frame 2500nits Semi-Outdoor Window Hanging LCD Screen

Name: Ultra-narrow Frame 2500nits Semi-Outdoor Window Hanging LCD Screen
Brand: Digital Signage | Gemdragon
SKU: 45275194163436
Availability: InStock

Ultra-narrow Frame 2500nits Semi-Outdoor Window Hanging LCD Screen Gemdragon for 2500 nits Window LCD Screen Item...

Vendedor: Digital Signage | Gemdragon

SKU:

Disponibilidad: Muchos en stock

Tipo De Producto: lcd window display

$0.00; $0.00
Precio unitario: por

¡Por favor, apúrate! Solo queda 0 en stock

Cantidad:

Total parcial: $0.00

10 los clientes están viendo este producto

Have a question or comment? Use the form below to send us a message

Ultra-narrow Frame 2500nits Semi-Outdoor Window Hanging LCD Screen

$0.00

Cantidad:

Ultra-narrow Frame 2500nits Semi-Outdoor Window Hanging LCD Screen

$0.00

Descripción

Ultra-narrow Frame 2500nits Semi-Outdoor Window Hanging LCD Screen

Gemdragon for 2500 nits Window LCD Screen
Item	Picture	Specification
55inch		1. Size: 55inch 2. Model: SX-55D2500A 3. 1920*1080 4. Active matrix LG LCD Panel : 2500nits 5. Android 11.0, RK3568 4G32G 6. Google, play store, bluetooth 7. HD CMS 8. EU plug 9. Black color 10. No touch 11. Vertical/Horizontal installation 12. Hanging Installation Production time: 12-15 working days
Product Pictures
Installation Way	Hanging installation : Price included. (Picture is for reference)
Aging test
Packing

Drawing size:

Panel Specification:

The Active Matrix LCD Screen has the characteristics of anti-vibration, anti-electromagnetic interference, stable picture quality and wide temperature range.

(When the screen running at high brightness of 2500, the internal temperature will reach 48-50°C. In order to protect the screen from being burned out and shortening its working life, we would recommend using an Active Matrix LCD Screen solution, which can resist direct ultraviolet rays from the sun through the window glass.)

Specification:
Panel Size	55’’
Model No.	SX-55D2500A
Brand	Original LG
Aspect Ratio	16:9
Visual Angle	Horizontal 178/Vertical178
Brightness	2500cd/m²
Bezel	5mm
Back light	LED backlight
Contract Ratio	1200: 1
Resolution Ratio	FHD 19201080/ 34802160(optional)
Color Components	16.7M
Response Time	8ms
Power Consumption	190W
Standby power consumption	10W
Power Supply	Input:AC110-240V-50/60Hz
Life of Panel	50000Hours
Haging Type (mm)	Steel Cables (1meter - 2meters )

The specification of Android RK3568 :

Hardware specifications
CPU	RK3568, quad-core, main frequency up to 2.0GHz , Android11
GPU	Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1
Memory	Standard 2GB , optional 4GB
Built-in storage capacity	eMMC standard 16GB optional 32GB TF Card expansion (can be used to expand SSD)
Network	Support RJ45 R/A 100M Ethernet, support Ethernet ; Support 5.8 GHz Wi-Fi ; Support Bluetooth 4.2 , mobile phone can send programs via Bluetooth.
Image rotation	Supports 0 degree, 90 degree, 180 degree, 270 degree manual rotation ; optional gravity sensor sensor supports automatic rotation
Display interface	1*LVDS interface (single/dual channel, 6-bit/8-bit), supports 3.3V/5V/12V power supply 1 EDP interface, 1 HDMI 1 V- By-One interface, supports 1 080 P output Reserve 1 HDMI IN interface, can be equipped with a small board Onboard backlight control supports 12V backlight power supply
Audio	Supports standard left and right channel line output ; supports 3.5mm audio output interface
Amplifier	2 outputs (8 ohm 5 watt dual audio amplifier output)
Microphone	Differential MIC input
Touchscreen	Support USB multi-point infrared touch, multi-point capacitive touch, multi-point nano film touch, multi-point sound wave touch, multi-point optical touch and more. .
RTC	Built-in real-time clock function
USB	1 USB-3.0 HOST, 1 USB3.0 OTG, 5 expansion USB ports
Infrared	Infrared receiver, supports infrared remote control function
Led	1Power status LED (green), 1System LED (green, default flashing)
Button	1*upgrade key
Serial port	4 UART, 1 DEBUG, 1 MCU burning serial port ; optional RS232 , RS 485 Among them, UART 1 is reused with Bluetooth, and the default is Bluetooth function.
GPIO	5-channel IO input and output control, can be used for key scanning control
KEY	Support physical switch
Power Adapter	Input: AC100-240V.50-60HZ, Output: DC12V 1.5A (The surge voltage is required to be less than 18V and the ripple voltage is less than 100mV)
Storage humidity	10%~90%, no condensation
Storage temperature	-40 ℃ ~70 ℃
Operating temperature	- 20 ℃~ 70 ℃

Software specifications
Operating system	Android 11
Audio	MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP and other formats
Video	Support H.265, H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 and other video formats
Picture	Support various image formats such as JPG, BMP, PNG, etc.
The system comes with application software	APK installer, email, calculator, browser, voice recorder, calendar, settings, clock, video player, search, contacts, gallery, downloads, camera, music, explorer and more
Language	support multi-languauge
Input	Standard Android keyboard, optional third-party input method
System Management	Original Android system with open root permissions for customized product development
	Real-time remote monitoring, self-recovery from system crash, 7*24 hours unattended
	Support OTA remote upgrade; support U disk upgrade
	Support boot animation definition
	Support server/stand-alone mode switching
	Support Wi-Fi hotspot
System watchdog	Support software watchdog and hardware watchdog

Remote Control Management System:

l Support LAN & CLOUD ;

l Support PC & Mobile devices ;

l Support Network & Standalone version;

l Support groups management;

l Support program management (timed play or scheduled play);

l Support control volume, power on/off time, real time update from PC/Mobile

l Supports management of multiple terminals at different locations.

More details please refer the attached files about the CMS .

wifi connection.jpg

Installation case: Other options

Customer project’s feedback:

Applications

This 55-inch window LCD screen is ideal for:

Retail Windows
Commercial Settings
Public Spaces
Transportation Hubs
Hospitality Venues

What is the Warranty policy ?

We warranty 1 year for screen , 2 year for parts During 2 year warranty period, for small part defective,we will send replacement parts for free of charge to customers,so customers can replace defective parts by new parts by themselves. We also will pay for shipping cost. For big defective problem,customers have to ship back defective units to us and we will repair or replacement for them for free of charge. For life-time maintenance (out of 1 year warranty period),any defective parts or units,customers will pay for replacement parts and shipping cost.We will charge a bottom cost for parts. The man-made damage and misusing damage is not under warranty.

Receiving process.

1. After the arrival of the goods, please check whether the packaging is damaged, if there is damage, please take pictures and videos to keep as evidence, and feedback to the sales staff.

2. open the package to check the product, pay special attention to the location of the wooden box by the impact (it is recommended to take video operation throughout), and power on the test.

3. Power on the test without problems before assembly

The after-sales handling process

(1)No single number and logistics without updates -

contact sales staff to provide a single number or update the logistics status

24hours

(2)Shipment stuck in customs

inform the sales staff of the required documents

24hours

(3)Inform the sales staff of the required documents

provide the local port of destination charges detailed, to the sales staff to verify

24hours

(4)Machine installation problems

sales staff to provide installation guidance or video guidance.

24hours

(5)Machine use problems

contact sales staff to provide guidance and technical support.

24hours

(6)The quality of goods problems

tell us what the problem is, and provide video and pictures, the engineer to determine the cause of the problem, and provide solutions.

24hours

Contact Us

Elevate your window displays with Gemdragon’s 55 Inch 2500 nits Window LCD Screen. Contact us today to learn more about how this high-performance digital signage solution can benefit your business.
