55 Inch 2500 nits Window LCD Screen
55 Inch 2500 nits Window LCD Screen Product Overview Gemdragon's 55 Inch 2500 nits Window LCD...
Availability:
Many In Stock
Product Type:
lcd window display
- $0.00
- $0.00
- Unit price
- per
Please hurry! Only 0 left in stock
Subtotal:
$0.00
10 customers are viewing this product
Contact us
Have a question or comment? Use the form below to send us a message
Description
x55 Inch 2500 nits Window LCD Screen
Product Overview
Gemdragon's 55 Inch 2500 nits Window LCD Screen is the perfect digital signage solution for high-visibility window displays. Designed to deliver stunning visuals with 4K UHD resolution and ultra-high brightness, this screen ensures your content stands out even in direct sunlight. Ideal for retail windows, commercial settings, and public spaces, this display offers unparalleled performance and versatility.
Key Features
- High Brightness Display: With a brightness of 2500 nits, this screen ensures clear visibility even in bright sunlight.
- 4K UHD Resolution: Provides crystal-clear images with a resolution of 3840x2160.
- Multiple Installation Options: Supports vertical or horizontal hanging installation for flexible display configurations.
- Robust Performance: Features anti-vibration, anti-electromagnetic interference, stable picture quality, and a wide temperature range.
- Smart Android System: Equipped with Android 11.0, RK3568 4G32G for seamless operation and connectivity.
- Remote Control Management: Supports LAN & CLOUD, PC & mobile devices for easy content management and control.
|
Gemdragon for 2500 nits Window LCD Screen |
||
|
Item |
Picture |
Specification |
|
55inch |
|
1. Size: 55inch 2. Model: SX-55D2500A 4. Active matrix LG LCD Panel : 2500nits 5. Android 11.0, RK3568 4G32G 6. Google, play store, bluetooth 7. HD CMS 8. EU plug 9. Black color 10. No touch 11. Vertical/Horizontal installation 12. Hanging Installation |
|
Product Pictures |
|
|
|
Installation Way |

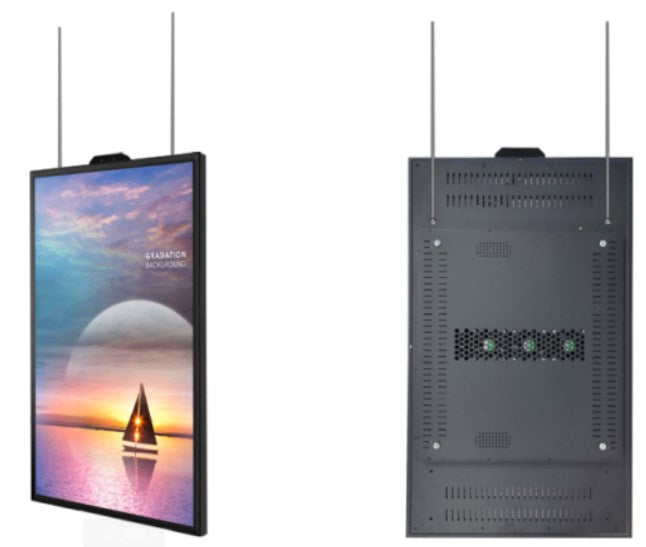

Hanging installation : Price included. (Picture is for reference) |
|
|
Aging test |
|
|
|
Packing |
|
|
Drawing size:
Panel Specification:
The Active Matrix LCD Screen has the characteristics of anti-vibration, anti-electromagnetic interference, stable picture quality and wide temperature range.
(When the screen running at high brightness of 2500, the internal temperature will reach 48-50°C. In order to protect the screen from being burned out and shortening its working life, we would recommend using an Active Matrix LCD Screen solution, which can resist direct ultraviolet rays from the sun through the window glass.)
|
Specification: |
|
|
Panel Size |
55’’ |
|
Model No. |
SX-55D2500A |
|
Brand |
Original LG |
|
Aspect Ratio |
16:9 |
|
Visual Angle |
Horizontal 178/Vertical178 |
|
Brightness |
2500cd/m² |
|
Bezel |
5mm |
|
Back light |
LED backlight |
|
Contract Ratio |
1200: 1 |
|
Resolution Ratio |
3840*2160, 4K UHD |
|
Color Components |
16.7M |
|
Response Time |
8ms |
|
Power Consumption |
190W |
|
Standby power consumption |
10W |
|
Power Supply |
Input:AC110-240V-50/60Hz |
|
Life of Panel |
50000Hours |
|
Haging Type (mm) |
Steel Cables (1meter - 2meters ) |
The specification of Android RK3568 :
|
Hardware specifications |
|
|
CPU |
RK3568, quad-core, main frequency up to 2.0GHz , Android11 |
|
GPU |
Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
|
Memory |
Standard 2GB , optional 4GB |
|
Built-in storage capacity |
eMMC standard 16GB optional 32GB TF Card expansion (can be used to expand SSD) |
|
Network |
Support RJ45 R/A 100M Ethernet, support Ethernet ; Support 5.8 GHz Wi-Fi ; Support Bluetooth 4.2 , mobile phone can send programs via Bluetooth. |
|
Image rotation |
Supports 0 degree, 90 degree, 180 degree, 270 degree manual rotation ; optional gravity sensor sensor supports automatic rotation |
|
Display interface |
1*LVDS interface (single/dual channel, 6-bit/8-bit), supports 3.3V/5V/12V power supply 1 EDP interface, 1 HDMI 1 V- By-One interface, supports 1 080 P output Reserve 1 HDMI IN interface, can be equipped with a small board Onboard backlight control supports 12V backlight power supply |
|
Audio |
Supports standard left and right channel line output ; supports 3.5mm audio output interface |
|
Amplifier |
2 outputs (8 ohm 5 watt dual audio amplifier output) |
|
Microphone |
Differential MIC input |
|
Touchscreen |
Support USB multi-point infrared touch, multi-point capacitive touch, multi-point nano film touch, multi-point sound wave touch, multi-point optical touch and more. . |
|
RTC |
Built-in real-time clock function |
|
USB |
1 USB-3.0 HOST, 1 USB3.0 OTG, 5 expansion USB ports |
|
Infrared |
Infrared receiver, supports infrared remote control function |
|
Led |
1*Power status LED (green), 1*System LED (green, default flashing) |
|
Button |
1*upgrade key |
|
Serial port |
4 UART, 1 DEBUG, 1 MCU burning serial port ; optional RS232 , RS 485 Among them, UART 1 is reused with Bluetooth, and the default is Bluetooth function. |
|
GPIO |
5-channel IO input and output control, can be used for key scanning control |
|
KEY |
Support physical switch |
|
Power Adapter |
Input: AC100-240V.50-60HZ, Output: DC12V 1.5A (The surge voltage is required to be less than 18V and the ripple voltage is less than 100mV) |
|
Storage humidity |
10%~90%, no condensation |
|
Storage temperature |
-40 ℃ ~70 ℃ |
|
Operating temperature |
- 20 ℃~ 70 ℃ |
|
Software specifications |
|
|
Operating system |
Android 11 |
|
Audio |
MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP and other formats |
|
Video |
Support H.265, H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 and other video formats |
|
Picture |
Support various image formats such as JPG, BMP, PNG, etc. |
|
The system comes with application software |
APK installer, email, calculator, browser, voice recorder, calendar, settings, clock, video player, search, contacts, gallery, downloads, camera, music, explorer and more |
|
Language |
support multi-languauge |
|
Input |
Standard Android keyboard, optional third-party input method |
|
System Management |
Original Android system with open root permissions for customized product development |
|
Real-time remote monitoring, self-recovery from system crash, 7*24 hours unattended |
|
|
Support OTA remote upgrade; support U disk upgrade |
|
|
Support boot animation definition |
|
|
Support server/stand-alone mode switching |
|
|
Support Wi-Fi hotspot |
|
|
System watchdog |
Support software watchdog and hardware watchdog |
Remote Control Management System:
l Support LAN & CLOUD ;
l Support PC & Mobile devices ;
l Support Network & Standalone version;
l Support groups management;
l Support program management (timed play or scheduled play);
l Support control volume, power on/off time, real time update from PC/Mobile
l Supports management of multiple terminals at different locations.
More details please refer the attached files about the CMS .
Installation case: Other options
Customer project’s feedback:
Applications
This 55-inch window LCD screen is ideal for:
- Retail Windows
- Commercial Settings
- Public Spaces
- Transportation Hubs
- Hospitality Venues
What is the Warranty policy ?
We warranty 1 year for screen , 2 year for parts During 2 year warranty period, for small part defective,we will send replacement parts for free of charge to customers,so customers can replace defective parts by new parts by themselves. We also will pay for shipping cost. For big defective problem,customers have to ship back defective units to us and we will repair or replacement for them for free of charge. For life-time maintenance (out of 1 year warranty period),any defective parts or units,customers will pay for replacement parts and shipping cost.We will charge a bottom cost for parts. The man-made damage and misusing damage is not under warranty.
Receiving process.
1. After the arrival of the goods, please check whether the packaging is damaged, if there is damage, please take pictures and videos to keep as evidence, and feedback to the sales staff.
2. open the package to check the product, pay special attention to the location of the wooden box by the impact (it is recommended to take video operation throughout), and power on the test.
3. Power on the test without problems before assembly
The after-sales handling process
|
(1)No single number and logistics without updates - |
contact sales staff to provide a single number or update the logistics status |
24hours |
|
(2)Shipment stuck in customs |
inform the sales staff of the required documents |
24hours |
|
(3)Inform the sales staff of the required documents |
provide the local port of destination charges detailed, to the sales staff to verify
|
24hours |
|
(4)Machine installation problems |
sales staff to provide installation guidance or video guidance.
|
24hours |
|
(5)Machine use problems |
contact sales staff to provide guidance and technical support.
|
24hours |
|
(6)The quality of goods problems |
tell us what the problem is, and provide video and pictures, the engineer to determine the cause of the problem, and provide solutions. |
24hours |
Contact Us
Elevate your window displays with Gemdragon’s 55 Inch 2500 nits Window LCD Screen. Contact us today to learn more about how this high-performance digital signage solution can benefit your business.
