Description
xProduct Description

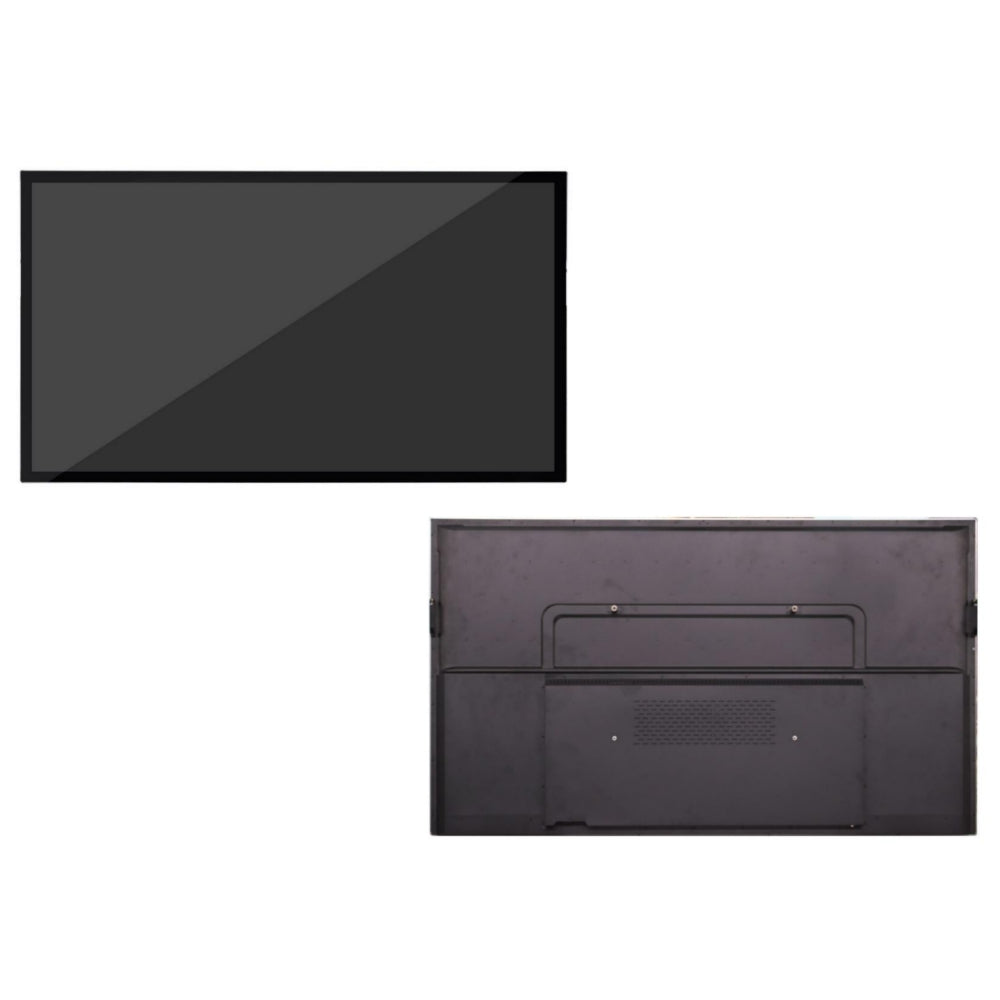

85’’ SX-85D450A Wall Mount LCD Digital Signage | Gemdragon
Welcome to the product page for the 85'' SX-85D450A Wall Mount LCD Digital Signage from Shenzhen Gemdragon Display Technology Co., Ltd. This model is a standout in our Classic Series, designed for superior performance and reliability in commercial environments.
Key Features
-
Display Specifications:
|
Item |
Picture |
Description |
|
85’’wall mount LCD screen |
|
• Brightness : 450nits (Typ.) • Resolution:3840(H)×2160(V) @60Hz DLED • No touch • HD RK3568 4G32G , Android11.0 • Built-in Speaker: (10 W + 10 W) with Dolby Support; • Life time : 50,000Hrs (Typ.) • Ports: HDMI IN, USB, RJ-45 (LAN); • Built-in operating system,Google, play store ; • Remote control *1 ; • WIFI 6.0GHz + Bluetooth 5.0 • Color: Black |
|
Movable bracket V2 |
|
Model name: FD-R11 , Bearing: 180kg, color: black/white, rollers (with brakes) With the ability to adjust the angle of inclination and height tray bearing: 5kg, material: metal cold rolled steel, general size: 55"-120", gross weight: 23kg, mounting hole distance: 1100*600, (horizontal × vertical) (camera tray + medium tray + storage box) |
What is the Warranty policy ?
Quality ensure & Return Policy
---------More better price on Bulk qty order
---------3 year long guarantee 100%
If have problem in 3 years we can undertake to repair or send accessaries parts for change to you
if goods arrive with problem we can change new one to you and undertake the ship fee that you send back the bad item back to us)
---------100% test before shipment and Fast shipment after payment.
Product specifications
Product name: Standrd model 85-inch No touch LCD all-in-one Monitor
Display parameters
|
Display size |
85 inch (16:9) |
|
|
Display type |
LED LCD display (DLED) |
|
|
Screen Brand |
SX-85D450A |
|
|
Screen display size |
1895.0*1066.0mm【HxV】 |
|
|
Physical resolution |
3840(H)×2160(V) 60Hz |
|
|
Display color |
10bit, 1.07B |
|
|
Refresh rate |
4K-60HZ |
|
|
Brightness |
450cd/m2 |
|
|
Contrast |
5000:1 |
|
|
Viewing angle (degrees) |
178°/178° |
|
|
Display protection |
4mm fully tempered high explosion-proof-white glass |
Choose one of two [anti-glare for an additional fee] |
|
4mm fully tempered high explosion-proof-anti-glare glass |
||
|
Backlight life |
50,000 hours |
|
●Color restoration is more realistic;
●Colour: Black,Sliver,Rose gold,can customize other colour;
●Brightness: 450nits;
●lnstallation: Wall Mount Installation;
●Version: Android 11.0
●lnterface: HDMI IN *1; USB 2.0 *2; RJ45*1 ;
●Touch screen optionl: No touch
●Application:Restaurant,shopping mall,coffee shop,movie theater;
●Long life, 7*24 hours of work, up to 50 thousand hours or more;
●High resolution, high contrast, high brightness, great improvement of image level, and better performance of detail;
●By using LED fog surface black light, the video image is more beautiful and the three-dimensional feeling is stronger;
●Built-in Speaker: (10 W + 10 W) with Dolby Support;
●Input the voltage:AC100-240V~(+/-10%), 50/60Hz;
85’’ Design and Drawing Size: mm
The specification of Android RK3568 :
|
Hardware specifications |
|
|
CPU |
RK3568, quad-core, main frequency up to 2.0GHz , Android 11 |
|
GPU |
Mali-G52 GPU supports OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1 |
|
Memory |
Standard 2GB , optional 4GB |
|
Built-in storage capacity |
eMMC standard 16GB optional 32GB TF Card expansion (can be used to expand SSD) |
|
Network |
Support RJ45 R/A 100M Ethernet, support Ethernet ; Support 6.0 GHz Wi-Fi ; Support Bluetooth 5.0 , mobile phone can send programs via Bluetooth. |
|
Image rotation |
Supports 0 degree, 90 degree, 180 degree, 270 degree manual rotation ; optional gravity sensor sensor supports automatic rotation |
|
Display interface |
1*LVDS interface (single/dual channel, 6-bit/8-bit), supports 3.3V/5V/12V power supply 1 EDP interface, 1 HDMI 1 V- By-One interface, supports 1 080 P output 1 HDMI IN interface, can be equipped with a small board Onboard backlight control supports 12V backlight power supply |
|
Audio |
Supports standard left and right channel line output ; supports 3.5mm audio output interface |
|
Amplifier |
2 outputs (8 ohm 5 watt dual audio amplifier output) |
|
Microphone |
Differential MIC input |
|
Touchscreen |
Support USB multi-point infrared touch, multi-point capacitive touch, multi-point nano film touch, multi-point sound wave touch, multi-point optical touch and more. . |
|
RTC |
Built-in real-time clock function |
|
USB |
1 USB-3.0 HOST, 1 USB3.0 OTG, 5 expansion USB ports |
|
Infrared |
Infrared receiver, supports infrared remote control function |
|
Led |
1*Power status LED (green), 1*System LED (green, default flashing) |
|
Button |
1*upgrade key |
|
Serial port |
4 UART, 1 DEBUG, 1 MCU burning serial port ; optional RS232 , RS 485 Among them, UART 1 is reused with Bluetooth, and the default is Bluetooth function. |
|
GPIO |
5-channel IO input and output control, can be used for key scanning control |
|
KEY |
Support physical switch |
|
Power Adapter |
Input: AC100-240V.50-60HZ, Output: DC12V 1.5A (The surge voltage is required to be less than 18V and the ripple voltage is less than 100mV) |
|
Storage humidity |
10%～90%, no condensation |
|
Storage temperature |
-40 ℃ ~70 ℃ |
|
Operating temperature |
- 20 ℃~ 70 ℃ |
|
Software specifications |
|
|
Operating system |
Android 11 |
|
Audio |
MP3, WMA, WAV, APE, FLAC, AAC, OGG, M4A, 3GPP and other formats |
|
Video |
Support H.265, H.264, VP8, MAV, WMV, AVS, H.263, MPEG4 and other video formats |
|
Picture |
Support various image formats such as JPG, BMP, PNG, etc. |
|
The system comes with application software |
APK installer, email, calculator, browser, voice recorder, calendar, settings, clock, video player, search, contacts, gallery, downloads, camera, music, explorer and more |
|
Language |
support multi-languauge |
|
Input |
Standard Android keyboard, optional third-party input method |
|
System Management |
Original Android system with open root permissions for customized product development |
|
Real-time remote monitoring, self-recovery from system crash, 7*24 hours unattended |
|
|
Support OTA remote upgrade; support U disk upgrade |
|
|
Support boot animation definition |
|
|
Support server/stand-alone mode switching |
|
|
Support Wi-Fi hotspot |
|
|
System watchdog |
Support software watchdog and hardware watchdog |
Application:
Some Projects did for clients:
Packing: Wooden case packing (Optional: flight box)
CERTIFICATER
Applications and Use Cases
The 85'' SX-85D450A Wall Mount LCD Digital Signage is perfect for high-resolution display needs in diverse commercial settings. Its sleek design, combined with advanced features, ensures exceptional performance and durability.
Explore the detailed specifications and capabilities of our 85'' SX-85D450A to enhance your digital signage solutions today. Contact us for more information or to place an order.
