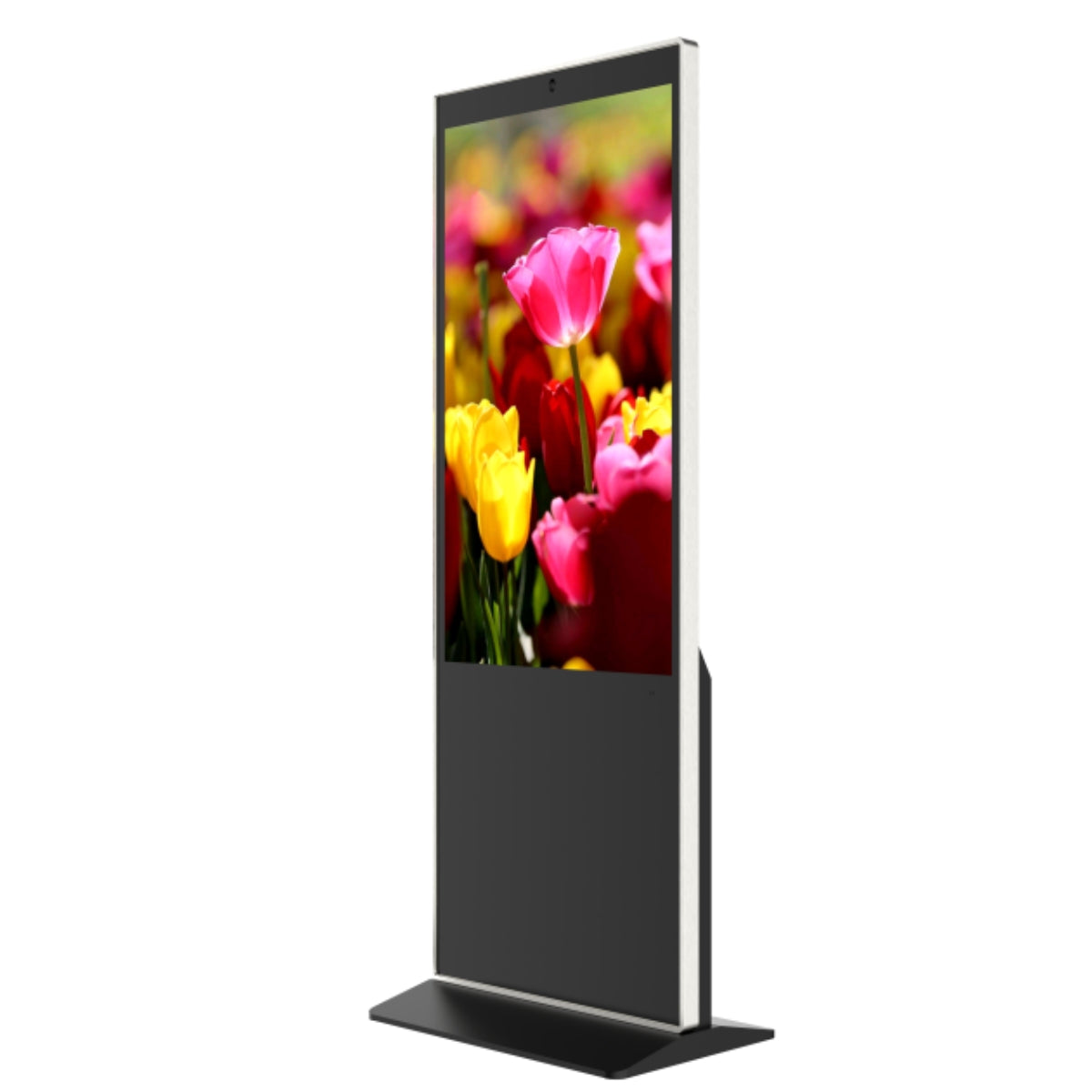

Floor Standing Digital Signage Kiosk | Gemdragon Display
Product Paramenters Screen configuration Screen size 43" (32 / 49 / 55 / 75 / 86 inch Screen...
Availability:
In Stock
Product Type:
Floor Standing Digital Signage
- $299.00
$299.00- $299.00
- Unit price
- per
Please hurry! Only 100 left in stock
Subtotal:
$299.00
10 customers are viewing this product
Contact us
Have a question or comment? Use the form below to send us a message
Description
xProduct Paramenters
|
Screen size
|
43" (32 / 49 / 55 / 75 / 86 inch Screen can support)
|
|
Resolution
|
1920 (RGB) × 1080 [FHD] / 2k / 4k (optional)
|
|
Display size
|
941.184 × 529.416 mm (H × V)
|
|
Visual size
|
945.18 × 533.42 mm (H × V)
|
|
Brightness (cd/m2)
|
250 - 450 (Typ.)
|
|
Best angle
|
full view
|
|
Viewing angle
|
89/89/89/89 (Min.) (CR ≥ 10)
|
|
Pitch
|
0.227mm (H) x 0.227mm (W)
|
|
Number of colors
|
16.7M/1.07B, 95% [CIE1931]
|
|
Screen weight
|
6.30Kgs (Typ./Max.)
|
|
Refresh rate
|
60Hz
|
|
Signal system
|
LVDS (2 ch, 10-bit), terminal, 51 pins
|
|
Supply voltage
|
12.0V (Typ.)
|
|
Maximum rating
|
Storage temperature: -20 ~ 60 °C Operating temperature: 0 ~ 50 °C
|
|
Screen type
|
LCD module, a-Si TFT-LCD.
|
|
Pixel configuration
|
RGB vertical strip
|
|
Appearance size
|
975.5 × 582.2 × 10.5 (H × V × D)
|
|
Surface treatment
|
matte (Haze 3%), Hard coating (1H)
|
|
Contrast ratio
|
1100 : 1 (Typ.) [Transmission]
|
|
Optical mode
|
IPS, normally black display, transmissive
|
|
Response speed
|
6 (Typ.) (G to G) ms
|
|
Backlight type
|
WLED, 30K hours, no drive
|
|
Motherboard configuration
|
|
|
CPU
|
RK3188, quad-core, frequency 1.6GHz
|
|
Memory
|
1 / 2G (optional)
|
|
Built-in memory
|
EMMC FLASH 8G (optional)
|
|
Built-in ROM
|
2KB EEPROM
|
|
Decoding resolution
|
up to 1080P
|
|
Operating system
|
Android 4.4 above
|
|
Play mode
|

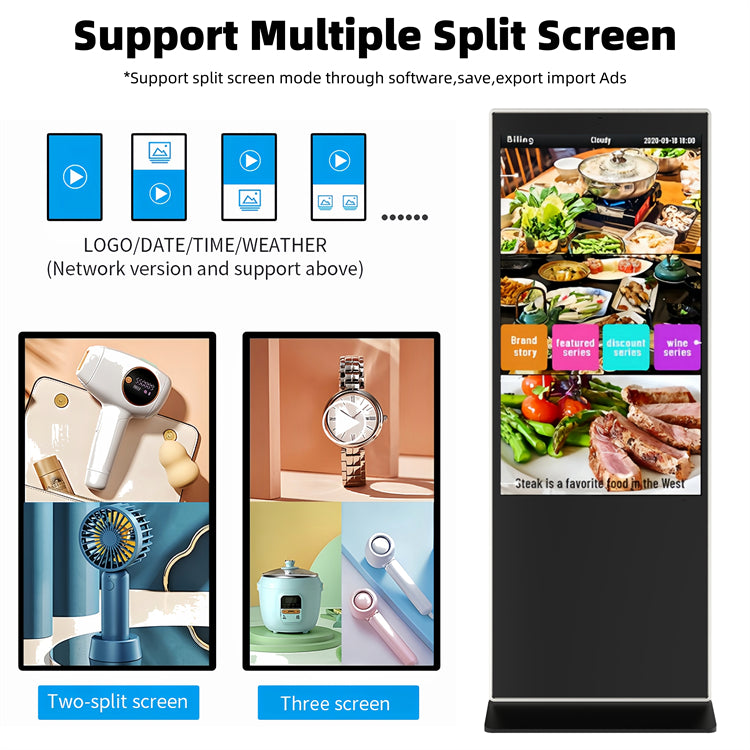

support for the cycle, timing, spots and other playback modes
|
|
Network support
|
3G, Ethernet, WiFi support, wireless peripherals expansion
|
|
Video playback
|
support wmv, avi, flv, rm, rmvb, mpeg, ts, mp4 and so on
|
|
Picture format
|
support BMP, JPEG, PNG, GIF
|
|
USB2.0 interface
|
3 USB HOST, 3 USB socket
|
|
Serial port
|
3 serial socket
|
|
TVIn
|
CVBS input 2, support N, P standard
|
|
GPS
|
built-in GPS (optional)
|
|
WIFI, BT
|
built-in WIFI, BT (optional)
|
|
Ethernet
|
1, 10M / 100M adaptive Ethernet
|
|
Timing switch machine
|
support
|
|
Infrared touch
|
|
|
Material
|
Glass thickness
|
|
Surface abrasion strength
|
strong, determined by the glass surface
|
|
Homogeneity
|
good
|
|
Touch the parameter
|
|
|
The number of times the theory is determined by the degree of glass wear
|
|
|
Design life
|
more than 5 years
|
|
Touch the fastest response speed
|
6ms
|
|
Touch the average reaction speed
|
8ms
|
|
Electrical parameters
|
|
|
Working voltage
|
4.5 ~ 5.5Vdc
|
|
Working current
|
≤120mA
|
|
Power
|
≤ 900mW
|
Product Description

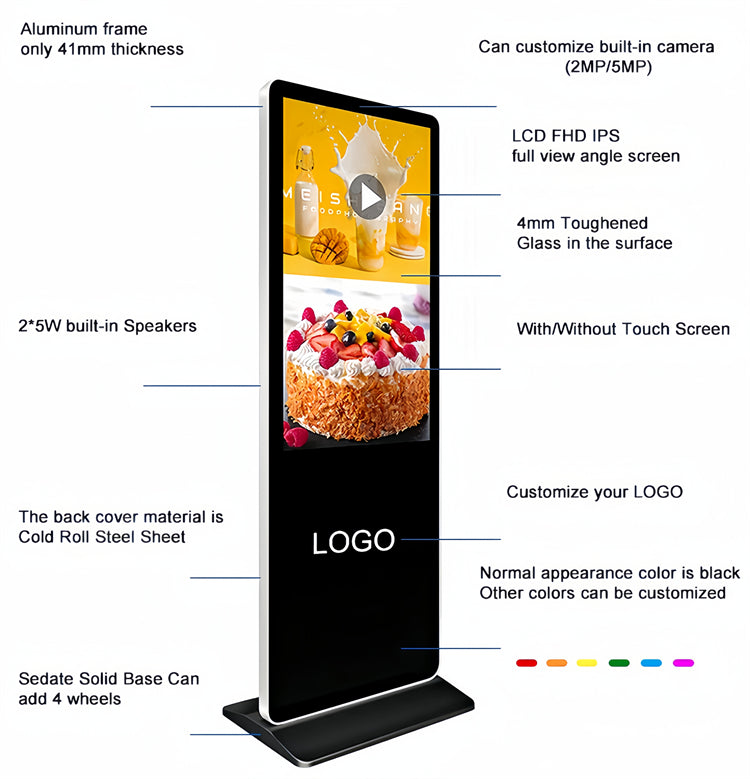

43 inch capacitive lcd advertising and touch screen advertising machine digital signage for lcd video display
Specification
Support OEM / ODM
Infrared Touch ( optional )
32 / 43 / 49 / 55 / 65 / 75 / 86 inch Screen can support

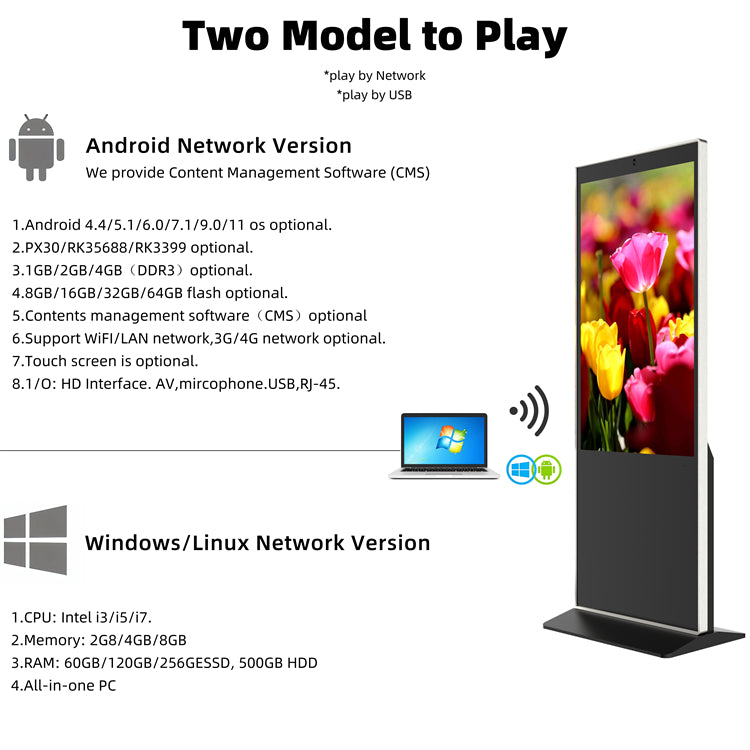

Stand-alone / Android / windows version optional
black , gold , silver ( optional )
*Note: The price in this link is the price of Android system with touch screen function
Company Information
Shenzhen Gemdragon Display Technology Co., Ltd.
We are a manufacturer of Digital Signage with well-equipped testing equipment and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in many industries.
intelligent interactive advertising machine
Why Choose Us
Pre-sale service:
Inquiries will be replied within 24 hours. Market research and forecast for customer. Provide unique and professional solutions based on customer's requirement. Data sheet and samples offered. Other required services such as special packing design, factory visiting and so on.
In-sale service:
Tracking producing procedures all the time. Provide photos and videos as per customer's requirement during production. Free spare parts provided.
After-sale service:
Complaint respond period not exceed 24 hours; maintenance guidance and problem solution supplied in 48 hours. Warranty: 24 months. Free technician training. Full set of documents free of charge, which including installation guidance, software operation manual, easy maintenance manual and control system software CD and so on.
Certifications
HD SCAN FILE
Packaging & Shipping
DELIVERY TIME:
DHL:3-4 Days arrive
ups:4-5 Days arrive
Fedex:4-5 Days arrive
EUEXP:7-10 Days arrive
USPS:10-20 Days arrive
touch advertising machine
FAQ
Q1: Are you a factory or trading company?
We are a OEM / ODM factory.
Q2: How long is the warranty time for your products?
Our officially promised warranty time is one whole year after delivery at best.
Q3: I haven't done business with you guys before,how can i trust your company?
Our company has been in China for almost 7 years,which is longer than most of our fellow suppliers,we've been golden suppliers for 10 years.what's more,we've got quite a lot authority certificates,for example,CE,UL,RoHS,FCC ISO9001, BV onsite check certificate.I hope those above will be persuasive enough.Our Trade Assurance Limit is US $736356.7, and it is still going up.
Q4: what's the shipment terms and delivery time of your company?
Well, they depends on the quantity of your order.As you know ,we need time to manufacture the machines.but mostly ,the shipment time is 3-8 working days after delivery.For Delivery way, for Sample and Bulk order < 100KG, we will kindly suggest Express and Air freight, when Air freight and Sea shipping for Bulk order >100KG.As for detailed cost, it depends on your final order.
Q5: what brand of screen are you using?
Samsung and LG screenare normally used for the digital signages and video walls, while customized screen is also supported.
Q6: I would like to ask you if it's possible to have my logo on the product.
We hope you know that our company Gendragon perfectly support customized logo service. But, we also hope you know that it's an extraservice,so a little bit extra service fee is needed.
Q7: What is the minimum order?
Yes, our company mainly deals with wholesale deals,but if you insist buying one set,or you just need one set,we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size digital photo frames,like 7 inch.Yes, our company mainly deals with wholesale deals,but if you insist buying one set,or you just need one set,we would be very likely to make the MOQ as 1 set for you though, except for some particularly small size digital photo frames, like 7 inch.
product name
advertising players / digital signage / advertising screen / digital display / advertising kiosks / digital signage display stands / advertising display / screen display / touch screen kiosk / kiosk touch screen / totems / digital screen / touch screen / displays / lcd advertising displays / digital signage display / screen advertising / digital signage player / lcd digital signage / digital signage displays / totem touch screen / digital advertising screen / totem digital / floor stand digital signage / digital display screen / digital signage screens / digital kiosk / digital display screens / indoor advertising screen / lcd advertising player / lcd advertising screen / display screen lcd advertising / digital signage screen / display kiosks / 55 inch touch screen / floor standing displays / lcd advertising / advertising display lcd / indoor lcd advertising display / advertising screen display / digital advertising display / totem touch / signage display advertising / indoor lcd display / digital screen display / indoor display screen / digital advertising / advertising signage
